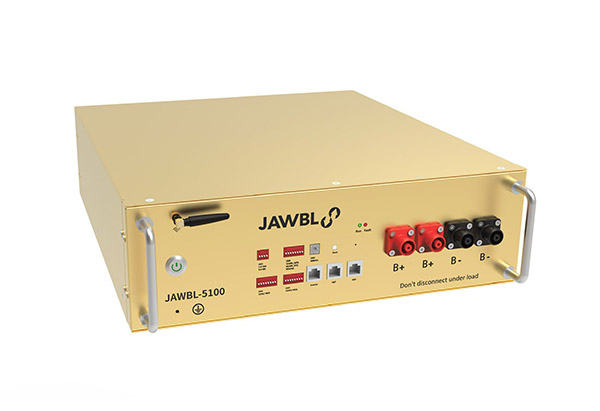

Residential ESS 5100

1.Signal module could be installed in parallel or serial connection.

2.Integrated WIFI Modem in each unit, helps to solve problem quickly for after service.

3.Direct connect with smart phone and battery BMS, solve after service for those site without internet.

4.Remote upgrade firmware decrease after service.

5.Relay included in each module, which is more stable and reliable than MOSfet.

6.Radom connect battery ignore the voltage different.

7.Provide wall mountain and ground install methods.

8.Voltage, current sampling precision, benefits SOC mathematic more accuracy.

9.SOC mathematic more correctly and never jump.

Product Spec
Basic Parameters	CFE 5100
Nominal Voltage(V)	51.2
Nominal Capacity（Wh)	5120
Usable Capacity(Wh)	4608
Dimension(mm)	442500133
Weight(Kg)	42
Charge/Dischage Current(A)	60(Recommend)
	60(Max)
	100(Peak@15s)
Commucation Port	CAN / RS485
Single string quantity(pcs)	8
Working Temperature/℃(Charge)	0～45
Working Temperature/℃(Discharge)	-10～55
Shelf Temperature/℃	-20～60
Humidity	5～85%
Altitude(m)	＜2000
IP Rating	IP20
Warranty	10 years
Cycle life	6000
Authentication Level	CE & TUV(IEC 62619, IEC 62040) UN38.3
Cooling Type	Ambient Cooling
Installation	Cabinet or Wall Mounting
